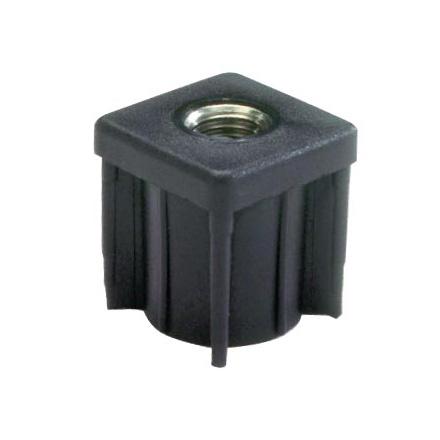

HEAVY DUTY THREADED SQUARE INSERT

These Heavy Duty Threaded Square Inserts are available in sizes ranging from 30mm square to 50mm square with thread sizes ranging from M10 to M20. Manufactured in black reinforced polyamide, these impact resistant inserts can withstand static loads of up to 9500 newtons.

From £5.5792

Colour

Black

Material

Reinforced Polyamide

Insert Material

Nickel Plated Brass

Skip to the end of the images gallery

Skip to the beginning of the images gallery

View Full Size

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

The size of all our tube insert products is based on the outside size of the tube they fit into. Please follow the below guidance to select the correct item. For assistance, please contact our sales department 01282 424376 sales@cotel.co.uk

OUTSIDE SIZE OF TUBE: Measure the external size of your tube.

TUBE WALL THICKNESS: Sometimes referred to as 'gauge size' and listed in some of the product tables as 'WT'. This is the thickness of the tube wall, the ribs on the inserts will suit a range of tube wall thickness. To check the insert will fit the tube inside size minus 2 x wall thickness from the tube outside size.

THREAD TYPE: Choose from moulded plastic thread or metal insert versions.

LOAD CAPACITY: Many of our threaded tube inserts are weight load rated for guidance on choosing the correct strength component for your application.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Part No. d1 Material Insert Material A Max Static Load Newton WT Colour Availability Min Qty Price Lead Time Qty Modal Action

4912/1

M10

Reinforced Polyamide

Part Number	4912/1
d1	M10
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	30 x 30
Max Static Load Newton	5500
WT	1.5
Colour	Black

Nickel Plated Brass

30 x 30

5500

1.5

Black

In Stock

£5.5792

In Stock

100+ £5.0492 each | 250+ £4.6586 each | 500+ £4.1007 each | 1000+ £3.7381 each

Add To Cart

4910/1

M10

Reinforced Polyamide

Part Number	4910/1
d1	M10
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	40 x 40
Max Static Load Newton	8000
WT	1.5
Colour	Black

Nickel Plated Brass

40 x 40

8000

1.5

Black

In Stock

£6.3401

In Stock

100+ £5.7378 each | 250+ £5.2940 each | 500+ £4.6600 each | 1000+ £4.2479 each

Add To Cart

4912/2

M12

Reinforced Polyamide

Part Number	4912/2
d1	M12
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	30 x 30
Max Static Load Newton	5500
WT	1.5
Colour	Black

Nickel Plated Brass

30 x 30

5500

1.5

Black

In Stock

£5.5792

In Stock

100+ £5.0492 each | 250+ £4.6586 each | 500+ £4.1007 each | 1000+ £3.7381 each

Add To Cart

4910/9

M12

Reinforced Polyamide

Part Number	4910/9
d1	M12
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	40 x 40
Max Static Load Newton	8000
WT	2
Colour	Black

Nickel Plated Brass

40 x 40

8000

Black

In Stock

£6.3401

In Stock

100+ £5.7378 each | 250+ £5.2940 each | 500+ £4.6600 each | 1000+ £4.2479 each

Add To Cart

4911/8

M12

Reinforced Polyamide

Part Number	4911/8
d1	M12
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	50 x 50
Max Static Load Newton	9500
WT	1.5
Colour	Black

Nickel Plated Brass

50 x 50

9500

1.5

Black

In Stock

£7.8615

In Stock

100+ £7.1147 each | 250+ £6.5644 each | 500+ £5.7782 each | 1000+ £5.2672 each

Add To Cart

4911/10

M12

Reinforced Polyamide

Part Number	4911/10
d1	M12
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	50 x 50
Max Static Load Newton	9500
WT	2.5
Colour	Black

Nickel Plated Brass

50 x 50

9500

2.5

Black

In Stock

£7.8615

In Stock

100+ £7.1147 each | 250+ £6.5644 each | 500+ £5.7782 each | 1000+ £5.2672 each

Add To Cart

4910/2

M12

Reinforced Polyamide

Part Number	4910/2
d1	M12
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	40 x 40
Max Static Load Newton	8000
WT	1.5
Colour	Black

Nickel Plated Brass

40 x 40

8000

1.5

Black

In Stock

£6.3401

In Stock

100+ £5.7378 each | 250+ £5.2940 each | 500+ £4.6600 each | 1000+ £4.2479 each

Add To Cart

4910/5

M16

Reinforced Polyamide

Part Number	4910/5
d1	M16
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	40 x 40
Max Static Load Newton	8000
WT	2
Colour	Black

Nickel Plated Brass

40 x 40

8000

Black

In Stock

£6.3401

In Stock

100+ £5.7378 each | 250+ £5.2940 each | 500+ £4.6600 each | 1000+ £4.2479 each

Add To Cart

4910/3

M16

Reinforced Polyamide

Part Number	4910/3
d1	M16
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	40 x 40
Max Static Load Newton	8000
WT	1.5
Colour	Black

Nickel Plated Brass

40 x 40

8000

1.5

Black

In Stock

£6.3401

In Stock

100+ £5.7378 each | 250+ £5.2940 each | 500+ £4.6600 each | 1000+ £4.2479 each

Add To Cart

4911/3

M16

Reinforced Polyamide

Part Number	4911/3
d1	M16
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	50 x 50
Max Static Load Newton	9500
WT	2
Colour	Black

Nickel Plated Brass

50 x 50

9500

Black

In Stock

£7.8615

In Stock

100+ £7.1147 each | 250+ £6.5644 each | 500+ £5.7782 each | 1000+ £5.2672 each

Add To Cart

4911/1

M16

Reinforced Polyamide

Part Number	4911/1
d1	M16
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	50 x 50
Max Static Load Newton	9500
WT	1.5
Colour	Black

Nickel Plated Brass

50 x 50

9500

1.5

Black

In Stock

£7.8615

In Stock

100+ £7.1147 each | 250+ £6.5644 each | 500+ £5.7782 each | 1000+ £5.2672 each

Add To Cart

4911/6

M16

Reinforced Polyamide

Part Number	4911/6
d1	M16
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	50 x 50
Max Static Load Newton	9500
WT	2.5
Colour	Black

Nickel Plated Brass

50 x 50

9500

2.5

Black

In Stock

£7.8615

In Stock

100+ £7.1147 each | 250+ £6.5644 each | 500+ £5.7782 each | 1000+ £5.2672 each

Add To Cart

4911/4

M20

Reinforced Polyamide

Part Number	4911/4
d1	M20
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	50 x 50
Max Static Load Newton	9500
WT	2
Colour	Black

Nickel Plated Brass

50 x 50

9500

Black

In Stock

£7.8615

In Stock

100+ £7.1147 each | 250+ £6.5644 each | 500+ £5.7782 each | 1000+ £5.2672 each

Add To Cart

4911/7

M20

Reinforced Polyamide

Part Number	4911/7
d1	M20
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	50 x 50
Max Static Load Newton	9500
WT	2.5
Colour	Black

Nickel Plated Brass

50 x 50

9500

2.5

Black

In Stock

£7.8615

In Stock

100+ £7.1147 each | 250+ £6.5644 each | 500+ £5.7782 each | 1000+ £5.2672 each

Add To Cart

4910/8

M10

Reinforced Polyamide

Part Number	4910/8
d1	M10
Material	Reinforced Polyamide
Insert Material	Nickel Plated Brass
A	40 x 40
Max Static Load Newton	8000
WT	2
Colour	Black
