SWIVEL CASTOR 30-70kg BLACK PP PLATE OR BOLT HOLE

Cotel Institutional Swivel Castors have a zinc plated pressed steel housing and black polypropylene wheel. They are available in 3 sizes and can withstand static loads of up to 70kg's. Top Plate or Bolt Hole fixings available. Ideal for medical furniture and retail display equipment.
From £2.4934
Colour
Black
Material
ZP Pressed Steel With Black Polypropylene Wheel

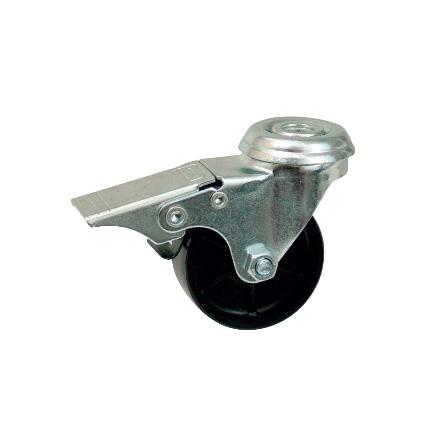

main product photo
Tech Drawing
View Full Size

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

We offer a large range of castor and wheel products, please consider the below when choosing the correct product. For assistance, please contact our sales department 01282 424376 sales@cotel.co.uk

CASTOR TYPE: Choose from fixed (where the castor only moves forwards and backwards) Swivel (where the castor moves in any direction for best manoeuvrability) Braked (swivel castor that moves in any direction but with brake pedal that in most cases locks the swivel head and the wheel and in certain products just the wheel only).

WHEELS: Size, the larger the wheel the easier it is to move (measure the wheel diameter from one side to the other). Tread width (the thickness of the wheel). Bore size (the diameter of the hole in the centre of the wheel). Choose from a range of wheel materials, generally nylon wheels offer good weight capacity and are suitable for smooth surfaces. Tyred wheels offer more cushion for use on uneven surfaces.

PLATE TYPE: This is the fixing plate on the top of the castor bracket (choose either top plate with four fixing holes or single bolt hole type which has a central hole for fixing using a threaded stem or round/square expander fittings to go into tubes).

LOAD CAPACITY: The effect of uneven or damaged floors must be allowed for when assessing the required load rating of a castor. The degree of defects will determine the extra the extra shock loads acting on the castors. When using four castors on a product please use the weight load capacity of three out of the four castors to ascertain the safe working load and consider the alternative configurations shown in our advice article 'Understanding Castors'.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Part No. d H d1 A x B Plate Style Wheel Dia Tread Width Loading (kg) C x D Type Min Qty Price Lead Time
C27711P - 68 h_up 10.2 - Bolt Hole 50 20 40 - Swivel 1
£3.4630 		In Stock Add To Cart
C27715P - 68 h_up 10.2 - Bolt Hole 50 20 40 - Braked 1
£4.2077 		In Stock Add To Cart
C27731P - 97 h_up 10.2 - Bolt Hole 75 25 70 - Swivel 1
£5.3330 		In Stock Add To Cart
C27735P - 97 h_up 10.2 - Bolt Hole 75 25 70 - Braked 1
£6.3198 		In Stock Add To Cart
C27701P 6 68 h_up - 50 x 50 Top Plate 50 20 40 39 x 39 Swivel 1
£3.0821 		In Stock Add To Cart
C27705P 6 68 h_up - 50 x 50 Top Plate 50 20 40 39 x 39 Braked 1
£4.3287 		In Stock Add To Cart
C27721P 6 97 h_up - 65 x 65 Top Plate 75 25 70 45.5 x 45.5 Swivel 1
£4.9520 		In Stock Add To Cart
C27725P 6 97 h_up - 65 x 65 Top Plate 75 25 70 45.5 x 45.5 Braked 1
£5.6965 		In Stock Add To Cart
C27681P 7 54 h_up - 51 x 51 Top Plate 40 17 30 37 x 37 Swivel 1
£2.4934 		In Stock Add To Cart
