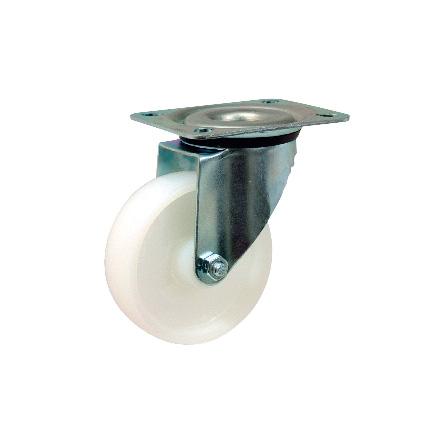

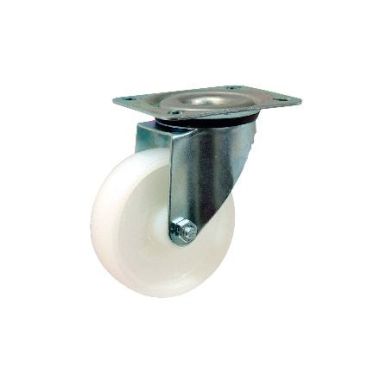

INDUSTRIAL SWIVEL & FIXED CASTOR 50-350kg WHITE NYLON TOP PLATE OR BOLT HOLE FIXING

Industrial White Nylon Swivel and Fixed Castors are available with a top plate or bolt hole fixing. Load ratings range from 50kg's to 350kg's making them perfect for a wide range applications including trolleys, equipment and machines. They have a zinc plated pressed steel housing with white nylon wheel.

From £3.2424
Colour
White
Material
ZP Pressed Steel Housing With White Nylon Wheel

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

We offer a large range of castor and wheel products, please consider the below when choosing the correct product. For assistance, please contact our sales department 01282 424376 sales@cotel.co.uk

CASTOR TYPE: Choose from fixed (where the castor only moves forwards and backwards) Swivel (where the castor moves in any direction for best manoeuvrability) Braked (swivel castor that moves in any direction but with brake pedal that in most cases locks the swivel head and the wheel and in certain products just the wheel only).

WHEELS: Size, the larger the wheel the easier it is to move (measure the wheel diameter from one side to the other). Tread width (the thickness of the wheel). Bore size (the diameter of the hole in the centre of the wheel). Choose from a range of wheel materials, generally nylon wheels offer good weight capacity and are suitable for smooth surfaces. Tyred wheels offer more cushion for use on uneven surfaces.

PLATE TYPE: This is the fixing plate on the top of the castor bracket (choose either top plate with four fixing holes or single bolt hole type which has a central hole for fixing using a threaded stem or round/square expander fittings to go into tubes).

LOAD CAPACITY: The effect of uneven or damaged floors must be allowed for when assessing the required load rating of a castor. The degree of defects will determine the extra the extra shock loads acting on the castors. When using four castors on a product please use the weight load capacity of three out of the four castors to ascertain the safe working load and consider the alternative configurations shown in our advice article 'Understanding Castors'.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Part No. Plate Style Type Wheel Dia A x B Bearing Type C x D d1 d H Loading (kg) Tread Width Min Qty Price Lead Time
C20317N material Top Plate Braked 75 105 x 80 Plain Bore 80 x 60 - 8 95 125 28 1
£8.2628
In Stock Add To Cart
C28005N material Top Plate Braked 80 105 x 85 Plain Bore 80 x 60 - 8 105 150 30 1
£10.7521
In Stock Add To Cart
C28035N material Top Plate Braked 100 105 x 85 Plain Bore 80 x 60 - 8 128 150 30 1
£11.0291
In Stock Add To Cart
C28055N material Top Plate Braked 125 105 x 85 Plain Bore 80 x 60 - 8 155 200 35 1
£12.1026
In Stock Add To Cart
C28076N material Top Plate Braked 150 140 x 110 Roller Bearing 105 x 80 - 10 190 350 40 1
£27.4247
4-5 Days Add To Cart
C28097N material Top Plate Braked 200 140 x 110 Roller Bearing 105 x 80 - 10 235 350 50 1
£34.4368
4-5 Days Add To Cart
C20315N material Top Plate Fixed 75 102 x 64 Plain Bore 80 x 35 - 8 95 125 28 1
£4.8911
In Stock Add To Cart
C20951N material Top Plate Fixed 50 69 x 43 Plain Bore 54 x 25 - 6 64 50 20 1
£3.2424
In Stock Add To Cart
C20954N material Top Plate Fixed 63 108 x 55 Plain Bore 90 x 27 - 8 83 85 25 1
£6.1137
In Stock Add To Cart
C28003N material Top Plate Fixed 80 105 x 85 Plain Bore 80 x 60 - 8 105 150 30 1
£5.3677
In Stock Add To Cart
C28033N material Top Plate Fixed 100 105 x 85 Plain Bore 80 x 60 - 8 128 150 30 1
£6.3891
In Stock Add To Cart
C28053N material Top Plate Fixed 125 105 x 85 Plain Bore 80 x 60 - 8 155 200 35 1
£8.3107
In Stock Add To Cart
C28074N material Top Plate Fixed 150 140 x 110 Roller Bearing 105 x 80 - 10 190 350 40 1
£17.2275
4-5 Days Add To Cart
C28094N material Top Plate Fixed 200 140 x 110 Roller Bearing 105 x 80 - 10 235 350 50 1
£24.4297
4-5 Days Add To Cart
C20316N material Top Plate Swivel 75 105 x 80 Plain Bore 80 x 60 - 8 95 125 28 1
£6.6322
In Stock Add To Cart
C20950N material Top Plate Swivel 50 67 x 48 Plain Bore 54 x 25 - 6 64 50 20 1
£4.3169
In Stock Add To Cart
C20952N material Top Plate Swivel 63 95 x 67 Plain Bore 73/76 x 44 - 8 83 85 25 1
£7.9663
In Stock Add To Cart
C28001N material Top Plate Swivel 80 105 x 85 Plain Bore 80 x 60 - 8 105 150 30 1
£7.3240
In Stock Add To Cart
C28030N material Top Plate Swivel 100 105 x 85 Plain Bore 80 x 60 - 8 128 150 30 1
£8.7609
In Stock Add To Cart
C28051N material Top Plate Swivel 125 105 x 85 Plain Bore 80 x 60 - 8 155 200 35 1
£9.5573
In Stock Add To Cart
C28072N material Top Plate Swivel 150 140 x 110 Roller Bearing 105 x 80 - 10 190 350 40 1
£22.3867
4-5 Days Add To Cart
C28091N material Top Plate Swivel 200 140 x 110 Roller Bearing 105 x 80 - 10 235 350 50 1
£28.8274
4-5 Days Add To Cart
C28015N material Bolt Hole Braked 80 - Plain Bore - 12 - 105 150 30 1
£11.4619
In Stock Add To Cart
C28045N material Bolt Hole Braked 100 - Plain Bore - 12 - 128 150 30 1
£12.6566
4-5 Days Add To Cart
C28066N material Bolt Hole Braked 125 - Roller Bearing - 12 - 155 200 35 1
£14.6995
4-5 Days Add To Cart
C28011N material Bolt Hole Swivel 80 - Plain Bore - 12 - 105 150 30 1
£9.4363
In Stock Add To Cart
C28041N material Bolt Hole Swivel 100 - Plain Bore - 12 - 128 150 30 1
£10.4923
4-5 Days Add To Cart
C28062N material Bolt Hole Swivel 125 - Roller Bearing - 12 - 155 200 35 1
£11.8601
4-5 Days Add To Cart
