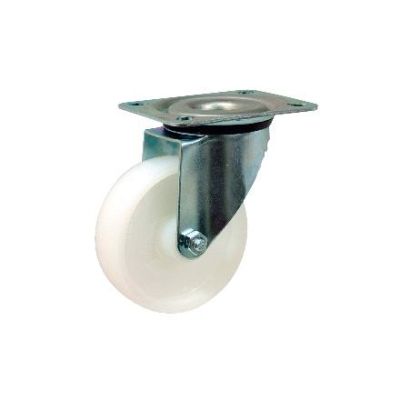

INDUSTRIAL SWIVEL & FIXED CASTOR 100-350kg BROWN POLYURETHANE TOP PLATE OR BOLT HOLE FIXING

These Industrial Swivel and Fixed Castors have a brown polyurethane tyre on a white nylon centre. Available in 5 different sizes these castors come with a top plate or bolt hole fixing. Load ratings range from 100kg's to 350kg's making them perfect for a wide range applications such as display equipment and trolleys.
From £7.9100
Colour
Dark Brown
Material
ZP Pressed Steel With Brown Polyurethane Tyre On Nylon

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

We offer a large range of castor and wheel products, please consider the below when choosing the correct product. For assistance, please contact our sales department 01282 424376 sales@cotel.co.uk

CASTOR TYPE: Choose from fixed (where the castor only moves forwards and backwards) Swivel (where the castor moves in any direction for best manoeuvrability) Braked (swivel castor that moves in any direction but with brake pedal that in most cases locks the swivel head and the wheel and in certain products just the wheel only).

WHEELS: Size, the larger the wheel the easier it is to move (measure the wheel diameter from one side to the other). Tread width (the thickness of the wheel). Bore size (the diameter of the hole in the centre of the wheel). Choose from a range of wheel materials, generally nylon wheels offer good weight capacity and are suitable for smooth surfaces. Tyred wheels offer more cushion for use on uneven surfaces.

PLATE TYPE: This is the fixing plate on the top of the castor bracket (choose either top plate with four fixing holes or single bolt hole type which has a central hole for fixing using a threaded stem or round/square expander fittings to go into tubes).

LOAD CAPACITY: The effect of uneven or damaged floors must be allowed for when assessing the required load rating of a castor. The degree of defects will determine the extra the extra shock loads acting on the castors. When using four castors on a product please use the weight load capacity of three out of the four castors to ascertain the safe working load and consider the alternative configurations shown in our advice article 'Understanding Castors'.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Part No. Plate Style Type Wheel Dia A x B Bearing Type C x D d1 d H Loading (kg) Tread Width Min Qty Price Lead Time
C28015BN material Bolt Hole Braked 80 - Plain Bore - 12 - 105 100 30 1
£13.8200
4-5 Days Add To Cart
C28046BN material Bolt Hole Braked 100 - Roller Bearing - 12 - 128 150 30 1
£16.2800
4-5 Days Add To Cart
C28066BN material Bolt Hole Braked 125 - Roller Bearing - 12 - 155 200 35 1
£19.6500
4-5 Days Add To Cart
C28011BN material Bolt Hole Swivel 80 - Plain Bore - 12 - 105 100 30 1
£11.9300
4-5 Days Add To Cart
C28042BN material Bolt Hole Swivel 100 - Roller Bearing - 12 - 128 150 30 1
£13.4700
4-5 Days Add To Cart
C28062BN material Bolt Hole Swivel 125 - Roller Bearing - 12 - 155 200 35 1
£17.1600
4-5 Days Add To Cart
C28005BN material Top Plate Braked 80 105 x 85 Plain Bore 80 x 60 - 8 105 100 30 1
£12.4100
In Stock Add To Cart
C28036BN material Top Plate Braked 100 105 x 85 Roller Bearing 80 x 60 - 8 128 150 30 1
£14.7000
4-5 Days Add To Cart
C28056BN material Top Plate Braked 125 105 x 85 Roller Bearing 80 x 60 - 8 155 200 35 1
£17.5900
4-5 Days Add To Cart
C28088BN material Top Plate Braked 160 140 x 110 Roller Bearing 105 x 80 - 10 195 350 45 1
£40.3600
4-5 Days Add To Cart
C28097BN material Top Plate Braked 200 140 x 110 Roller Bearing 105 x 80 - 10 235 350 50 1
£45.0700
4-5 Days Add To Cart
C28003BN material Top Plate Fixed 80 105 x 85 Plain Bore 80 x 60 - 8 105 100 30 1
£7.9100
4-5 Days Add To Cart
C28034BN material Top Plate Fixed 100 105 x 85 Roller Bearing 80 x 60 - 8 128 150 30 1
£10.8700
4-5 Days Add To Cart
C28054BN material Top Plate Fixed 125 105 x 85 Roller Bearing 80 x 60 - 8 155 200 35 1
£14.0800
4-5 Days Add To Cart
C28085BN material Top Plate Fixed 160 140 x 110 Roller Bearing 105 x 80 - 10 195 350 45 1
£27.3600
4-5 Days Add To Cart
C28094BN material Top Plate Fixed 200 140 x 110 Roller Bearing 105 x 80 - 10 235 350 50 1
£36.3100
4-5 Days Add To Cart
C28001BN material Top Plate Swivel 80 105 x 85 Plain Bore 80 x 60 - 8 105 100 30 1
£11.3400
4-5 Days Add To Cart
C28031BN material Top Plate Swivel 100 105 x 85 Roller Bearing 80 x 60 - 8 128 150 30 1
£11.7900
In Stock Add To Cart
C28052BN material Top Plate Swivel 125 105 x 85 Roller Bearing 80 x 60 - 8 155 200 35 1
£15.1500
In Stock Add To Cart
C28082BN material Top Plate Swivel 160 140 x 110 Roller Bearing 105 x 80 - 10 195 350 45 1
£32.5200
4-5 Days Add To Cart
C28091BN material Top Plate Swivel 200 140 x 110 Roller Bearing 105 x 80 - 10 235 350 50 1
£39.6800
4-5 Days Add To Cart
